8*2mm Silver Coating PTC Thermistor Chip 120 Ohm 105 DegC MZ4-08BB121H-105X Round Heating Element

8*2mm Silver Coating PTC Thermistor Chip 120 Ohm 105 DegC MZ4-08BB121H-105X Round Heating Element

PTC thermistor for heating.pdf

1. Name and specifications: PTC thermistor Φ8*2 120Ω (105℃)

2·Product appearance:

2.1 Outline drawing: (Unit: mm)

3·Technical requirements and inspection methods
3.1 Routine inspection items

3.2 Reliability test

4 Precautions when using
4.1 Usage environment
Temperature: 0℃～+45℃
Relative humidity: ≤95% (25℃)
Atmospheric pressure: 70~106Kpa, no harmful gases (such as reducing gases, corrosive gases, etc.)
4.2 PTC must be used under the specified voltage and frequency. The allowable voltage and frequency fluctuation range is
±10%.

5Storage
Ambient temperature: -25 ~+45℃
Relative humidity: no more than 50%RH
Surrounding medium: No corrosive gases such as acid and alkali

Factory strength display:

Product Description:

PTC chip is one kind of constant temperature heating piece, which is widely used in PTC heaters, PTC start relay chips and PTC starter chips. It has excellent performance and reliable quality. The main feature of the PTC chip is that it has a Curie temperature range of (50℃-310℃)±7℃, and the surface temperature range is (50℃-300℃)±10℃. The dimension of the chip is 5mm-20mm, and the rated zero-power resistance is 1Ω-10000Ω. The PTC chip is characterized by high efficiency, low power consumption, fast heating, and no spark hazard. It is an ideal product for PTC heaters, PTC start relay chips and PTC starter chips. PTC chip also has good thermal shock resistance, thermal fatigue resistance, and long service life.

Features:

• Product Name: PTC Chip
• Rated Zero-power Resistance: 1Ω-10000Ω
• Withstand Voltage(Ub): 20V-220V/60S
• Surface Temperature: (50℃-300℃)±10℃
• Material: Ceramics
• Curie Temperature: (50℃-310℃)±7℃
• PTC Start Relay Chip: Yes
• PTC Chip: Yes
• PTC Heating Chip: Yes

Technical Parameters:

Applications:

The LK-PTC PTC Starter Chip is a ceramic heater with a model number of 5mm-20mm, manufactured in China. It is designed to provide constant temperature heating and is able to withstand voltage between 20V-220V/60S. The PTC Constant Temperature Heating Piece is made of high-quality ceramics, and its surface temperature can range from 50℃-300℃, with a rated zero-power resistance of 1Ω-10000Ω. This makes it an ideal choice for various industrial and commercial applications, such as aerospace, medical, automotive, and other electronics. It is also suitable for other PTC heaters, such as PTC ceramic heaters, PTC heaters, and so on. The LK-PTC PTC Starter Chip is a reliable and durable solution for providing consistent heating.

Customization:

Brand Name: LK-PTC
Model Number: 5mm-20mm
Place of Origin: China
Name: PTC Constant Temperature Heating Piece

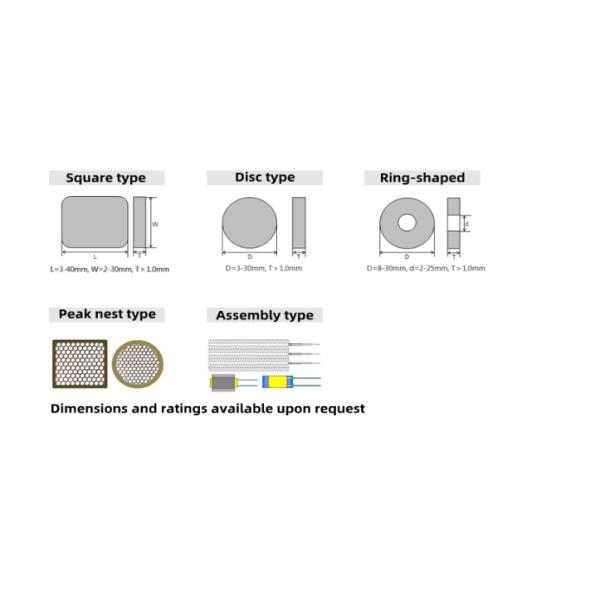

Dimension: 5mm -20mm
Material: Ceramics
Rated Zero-power Resistance: 1Ω-10000Ω
Curie Temperature: (50℃-310℃)±7℃

We provide customized service for PTC Chip, PTC Heaters, PTC Ceramic Heater and Constant Temperature Heating Piece.

We offer PTC Chip with brand name LK-PTC, model number from 5mm to 20mm, origin from China. The material is ceramics, and the rated zero-power resistance is from 1Ω to 10000Ω, and the Curie temperature is (50℃-310℃)±7℃.

If you have any needs of customized PTC Chip, PTC Heaters, PTC Ceramic Heater and Constant Temperature Heating Piece, please contact us for more information.

Packing and Shipping:

Packaging and Shipping for PTC Chip:

PTC Chip is packaged in a vacuum sealed package to ensure its quality and integrity. It is securely packed and shipped with a tracking number so customers are always aware of its delivery status. All shipments are insured and are delivered via a reliable shipping service.

FAQ:
